P301 SERIES OVERVIEW

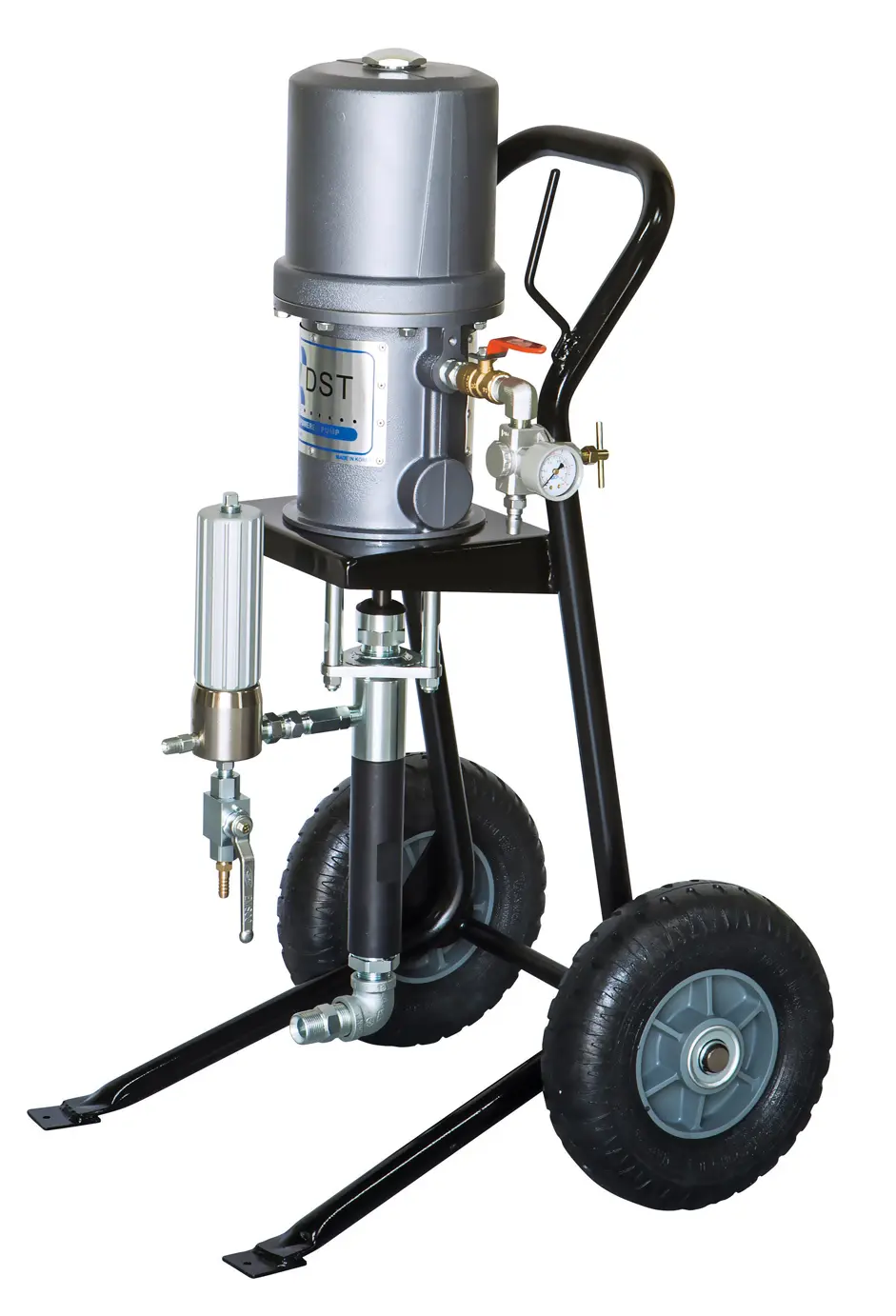

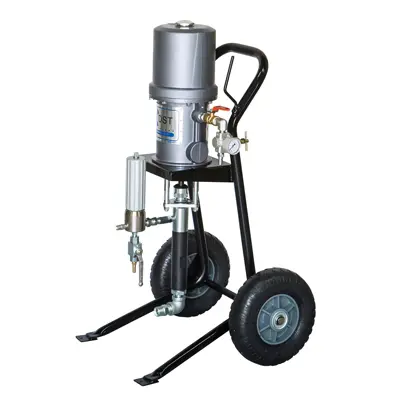

P301 Series
A compact yet powerful pneumatic airless pump designed for versatility and easy mobility. With a 4.25-inch air motor and a 30:1 pressure ratio, it provides consistent performance for a wide range of coating applications.
- Air-powered 30:1 high-pressure design: Delivers up to 3.7 L/min for medium-viscosity and protective coatings
- Compact and portable: Lightweight design for easy movement on job sites
- Durable stainless steel option: Built for long-lasting performance and corrosion resistance
- Low-pulsation operation: Ensures smooth spray patterns and professional finishes
- Versatile applications: Ideal for construction, metal structures, ship maintenance, wood coatings, and high-performance protective coatings
Detailed Specs
FLUID PRESSURE RATIO
10:1
DELIVERY(LITER)/MIN
11.4
CC PER CYCLE
191
AIR MOTOR DIAMETER(INCH;MM)
4.25(108)
STROKE LENGTH(MM)
102mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
1015(70)
FLUID PRESSURE RATIO
30:1
DELIVERY(LITER)/MIN
3.7
CC PER CYCLE
61
AIR MOTOR DIAMETER(INCH;MM)
4.25(108)
STROKE LENGTH(MM)
102mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
3045(210)
FLUID PRESSURE RATIO
50:1
DELIVERY(LITER)/MIN
2.1
CC PER CYCLE
36
AIR MOTOR DIAMETER(INCH;MM)
4.25(108)
STROKE LENGTH(MM)
102mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
5076(350)
• All packages completely tested and ready to spray
• Spray a variety of fluids from conventional coating to high performance corrosion control coating
