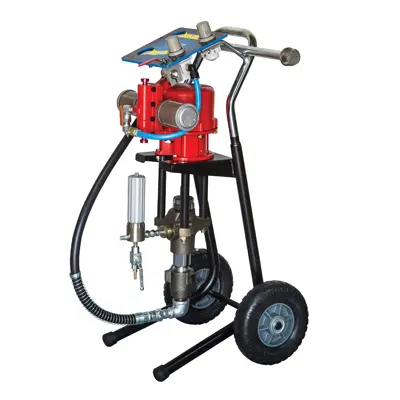

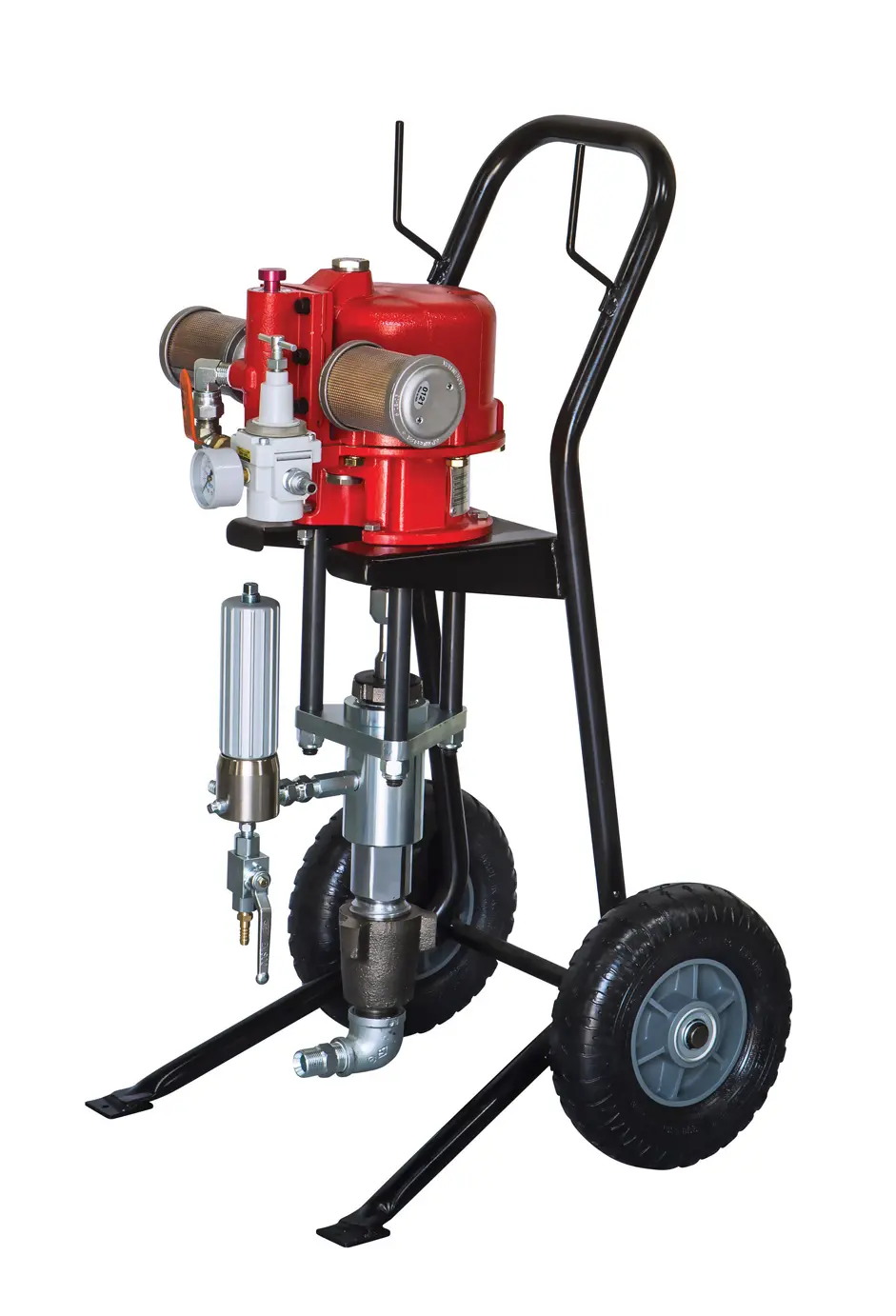

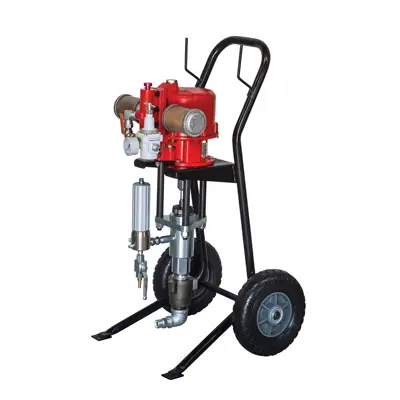

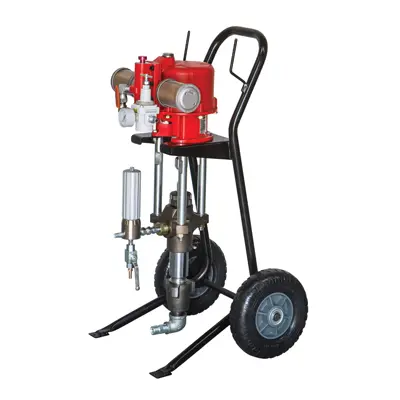

N165 SERIES OVERVIEW
N165 – DSTech’s Signature series
A versatile pneumatic spray pump line designed for both airless and air-assisted applications, covering everything from high-viscosity industrial coatings to fine-finish commercial work. With a 6.5-inch air motor and a wide range of pressure ratios, the AV Series offers power, precision, and durability for all coating environments.
- Comprehensive performance range: Supports both airless heavy-duty spraying and air-assisted fine finishing
- 6.5-inch air motor: Lightweight yet powerful for diverse applications
- Anti-freezing and ice-breaking system: Reliable performance in cold or humid environments
- Multiple pressure ratios (28:1 to 60:1): Flexible for various coating viscosities and project sizes
- Low-pulsation spray quality: Consistent coverage with smooth finishes
- Wide application spectrum: Construction, shipyards, industrial protection, metal and wood finishing, plastic coating
Detailed Specs
FLUID PRESSURE RATIO
28:1
DELIVERY(LITER)/MIN
8.1
CC PER CYCLE
135
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
6.5(165)
STROKE LENGTH(MM)
90mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
2842(196)
FLUID PRESSURE RATIO
35:1
DELIVERY(LITER)/MIN
6.4
CC PER CYCLE
107
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
6.5(165)
STROKE LENGTH(MM)
90mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
3553(245)
FLUID PRESSURE RATIO
44:1
DELIVERY(LITER)/MIN
5.2
CC PER CYCLE
87
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
6.5(165)
STROKE LENGTH(MM)
90mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
4467(308)
FLUID PRESSURE RATIO
60:1
DELIVERY(LITER)/MIN
3.8
CC PER CYCLE
64
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
6.5(165)
STROKE LENGTH(MM)
90mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
6091(420)
FLUID PRESSURE RATIO
28:1
DELIVERY(LITER)/MIN
8.1
CC PER CYCLE
135
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
6.5(165)
STROKE LENGTH(MM)
90mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
2900(200)
• All packages completely tested and ready to spray
• Spray a variety of fluids from conventional coating to high performance corrosion control coating
