M108 SERIES OVERVIEW

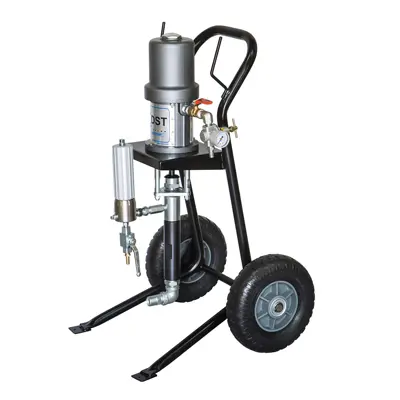

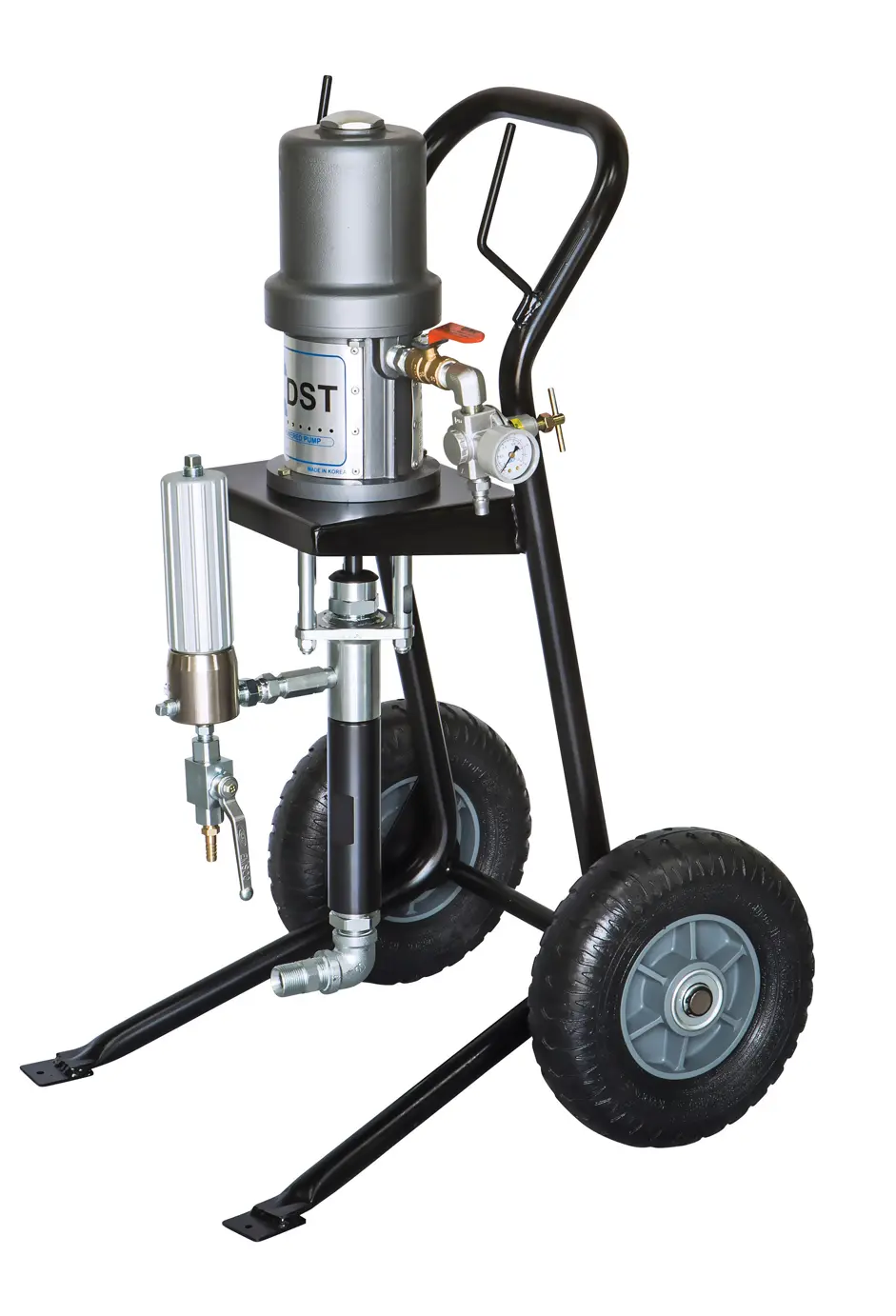

M108 Series
A lightweight, portable pneumatic airless pump ideal for small to medium-scale projects and versatile coating applications.
Equipped with a 3-inch air motor and multiple pressure ratio options, it provides reliable performance in maintenance and decorative coating work.
- Compact & portable design: Easy to move and operate, perfect for smaller job sites
- Versatile performance: Suitable for construction, metal structures, wood coatings, and maintenance projects
- Multiple pressure ratios (5:1, 15:1, 23:1): Flexible setup for different coating types and materials
- Smooth spray quality: Low-pulsation operation ensures consistent finishes
- Stainless steel option: Enhanced durability and corrosion resistance
- Easy to maintain: Simplified structure for quick service and reduced downtime
Detailed Specs
FLUID PRESSURE RATIO
5:1
DELIVERY(LITER)/MIN
8.7
CC PER CYCLE
145
AIR MOTOR DIAMETER(INCH;MM)
3(76)
STROKE LENGTH(MM)
76mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
507(35)
FLUID PRESSURE RATIO
15:1
DELIVERY(LITER)/MIN
2.7
CC PER CYCLE
45
AIR MOTOR DIAMETER(INCH;MM)
3(76)
STROKE LENGTH(MM)
76mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
1522(105)
FLUID PRESSURE RATIO
23:1
DELIVERY(LITER)/MIN
1.6
CC PER CYCLE
27
AIR MOTOR DIAMETER(INCH;MM)
3(76)
STROKE LENGTH(MM)
76mm
AIR POWERED RANGE(BAR)
2-7
MAXIMUM PRESSURE(PSI;BAR)
2334(161)
• All packages completely tested and ready to spray
• Spray a variety of fluids from conventional coating to high performance corrosion control coating
