B178 SERIES OVERVIEW

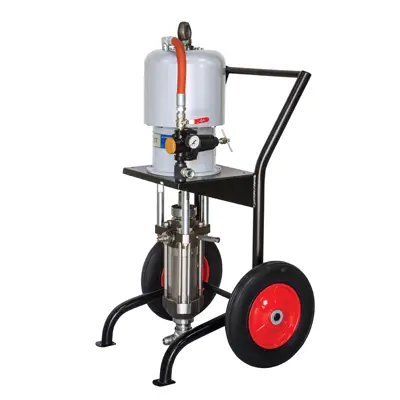

B178 Series
A heavy-duty pneumatic airless pump built for large-scale and demanding coating projects. Equipped with a 7-inch air motor and up to 33:1 pressure ratio, it provides exceptional flow and reliability for industrial applications.
Reliable, air-powered, high-pressure pump designed for medium- to high-viscosity coatings and demanding industrial applications.
- High-capacity 7.0-inch air motor: Delivers up to 13.6 L/min for high-productivity spraying
- Heavy-duty air regulator: Ensures stability in tough industrial environments
- Easy maintenance design: Simplified repair and replacement for displacement components
- Low-pulsation operation: Smooth spray patterns and consistent finish quality
- Versatile applications: Perfect for construction, ship maintenance, protective coatings, and metal structures
- Stainless steel option available: For high-performance corrosion resistance
Detailed Specs
FLUID PRESSURE RATIO
28:1
DELIVERY(LITER)/MIN
13.6
CC PER CYCLE
227
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
7(178)
STROKE LENGTH(MM)
127mm
AIR POWERED RANGE(BAR)
1-7
MAXIMUM PRESSURE(PSI;BAR)
2842(196)
FLUID PRESSURE RATIO
33:1
DELIVERY(LITER)/MIN
11.4
CC PER CYCLE
190
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
7(178)
STROKE LENGTH(MM)
127mm
AIR POWERED RANGE(BAR)
1-7
MAXIMUM PRESSURE(PSI;BAR)
3350(231)
• All packages completely tested and ready to spray
• Spray a variety of fluids from conventional coating to high performance corrosion control coating
