AKS-651 OVERVIEW

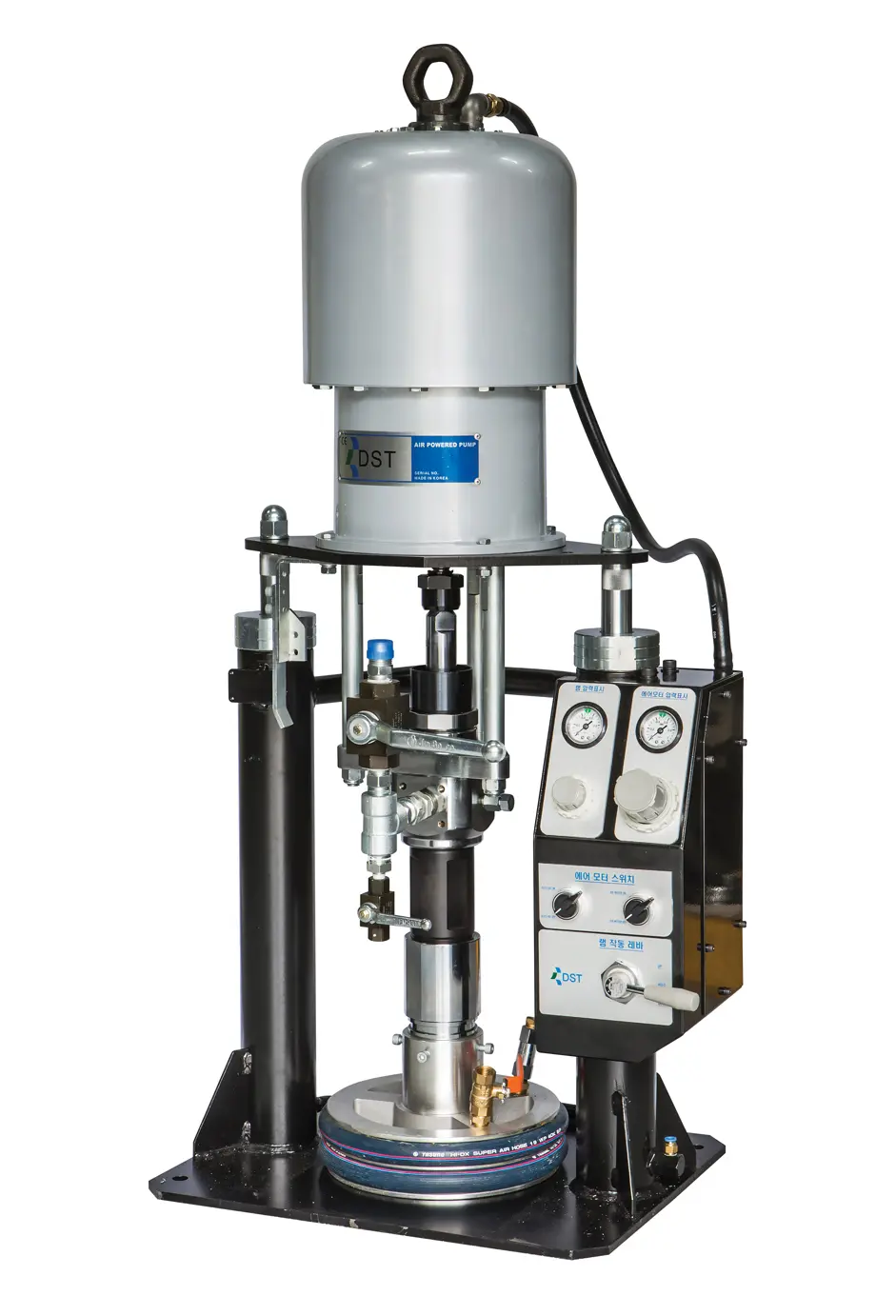

CAN TYPE(Half Two Post Can Type): AKS-651
The AK RAM Pump Half Two Post Can Type is a compact yet powerful pneumatic ram system engineered for high-viscosity materials. Designed for direct-from-can operation, it combines a 65:1 high-pressure ratio with a space-efficient frame, making it ideal for facilities where mobility and reduced footprint are key.
- 65:1 High-Pressure Ratio: Handles thick, heavy materials with ease and delivers up to 455 bar (6599 psi)
- Compact Half-Post Design: Saves floor space while ensuring drum stability and secure material handling
- Direct-from-Container Feeding: Pumps straight from material cans, minimizing waste and transfer time
- High Flow Rate (12 L/min): Increases productivity for industrial applications
- Durable 10-inch Air Motor: Provides powerful, consistent performance for high-viscosity coatings
- Check-Mate Pump Design: Reduces wear per stroke, extending service life and lowering maintenance costs
- Industrial-Grade Build: Rugged structure with a total height of 1,850mm and weight of 142kg for long-term reliability
- Wide Application Range: Mastics, inks, adhesives, sealants, lubricants, and protective coatings
Detailed Specs
FLUID PRESSURE RATIO
65:1
DELIVERY(LITER)/MIN
12
CC PER CYCLE
200
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
10(254)
STROKE LENGTH(MM)
127mm
AIR POWERED RANGE(BAR)
1-7
MAXIMUM PRESSURE(PSI;BAR)
6599(455)
SIZE
560x340x1,450mm
MAX HEIGHT
1,850mm
WEIGHT
142kg
• All packages completely tested and ready to spray
• Spray a variety of fluids from conventional coating to high performance corrosion control coating
