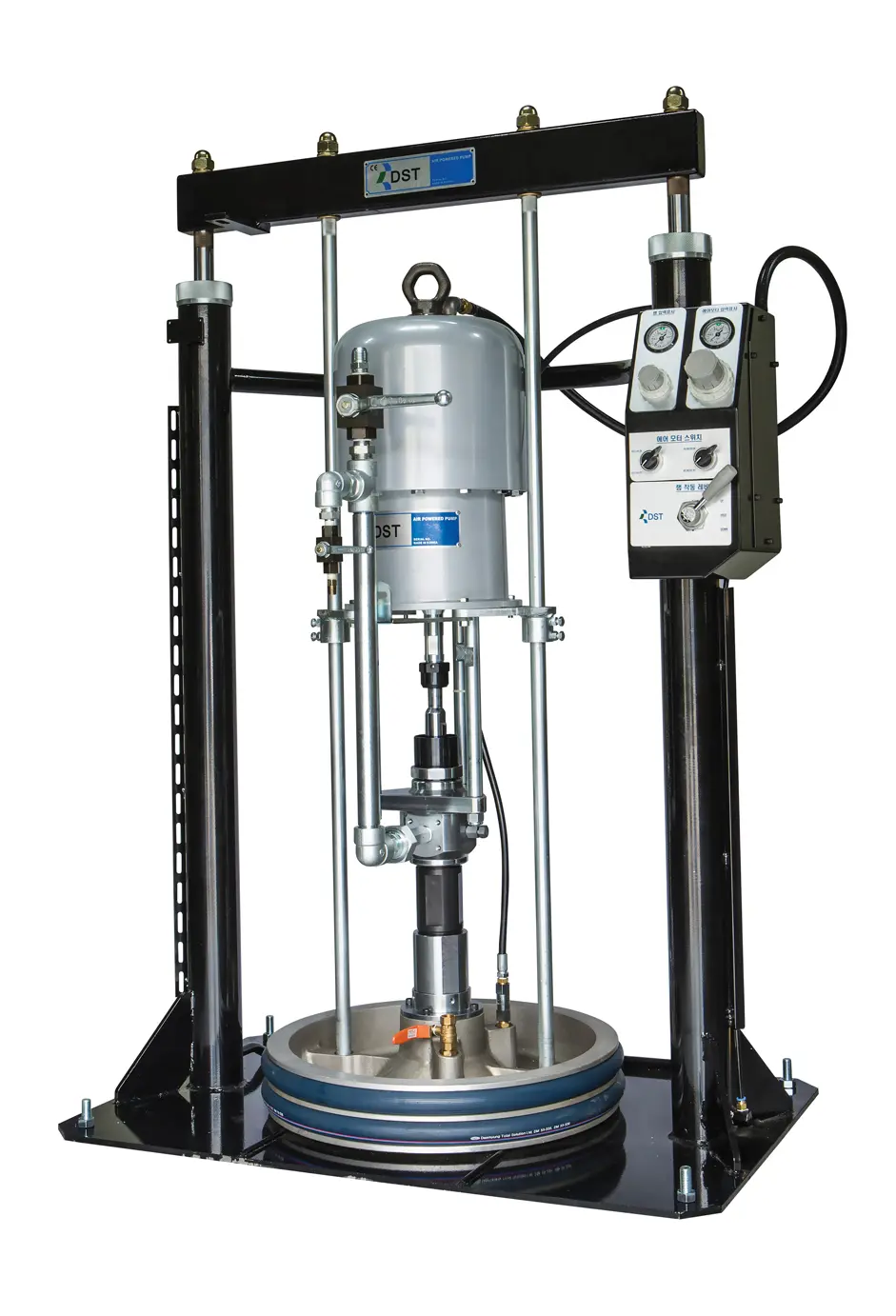

AKL-651 OVERVIEW
DRUM TYPE(Full Two Post Drum Type): AKL-651
Ram Pump is a heavy-duty pneumatic airless system designed for extremely high-viscosity coatings and industrial materials. Featuring a powerful hydraulic ram mechanism, this pump delivers precise, stable feeding of thick materials directly from drums, eliminating material waste and ensuring maximum productivity.
- Powerful Ram-Assist System: Provides smooth, consistent material flow, even with extremely thick coatings
- Direct-from-Drum Operation: Pumps material straight from the original container, reducing transfer time and cleanup
- 65:1 High-Pressure Ratio: Achieves up to 455 bar (6599 psi) for heavy-duty industrial applications
- High Volume Output (12 L/min): Maximizes efficiency for large-scale production environments
- 10-inch Heavy-Duty Air Motor: Delivers exceptional force for high-viscosity and abrasive materials
- Robust Frame and Construction: Industrial-grade design with 2,650 mm total height and 268 kg weight for maximum stability
- Wide Material Compatibility: Ideal for mastics, sealants, adhesives, lubricants, and high-build protective coatings
- Cost-Effective Design: High output per stroke reduces wear, extending pump life and lowering maintenance costs
Detailed Specs
FLUID PRESSURE RATIO
65:1
DELIVERY(LITER)/MIN
12
CC PER CYCLE
200
MAX. PUMP SPEED / MIN
60
AIR MOTOR DIAMETER(INCH;MM)
10(254)
STROKE LENGTH(MM)
127mm
AIR POWERED RANGE(BAR)
1-7
MAXIMUM PRESSURE(PSI;BAR)
6599(455)
SIZE
1,060x620x1,585mm
MAX HEIGHT
2,650mm
WEIGHT
268kg
• All packages completely tested and ready to spray
• Spray a variety of fluids from conventional coating to high performance corrosion control coating
