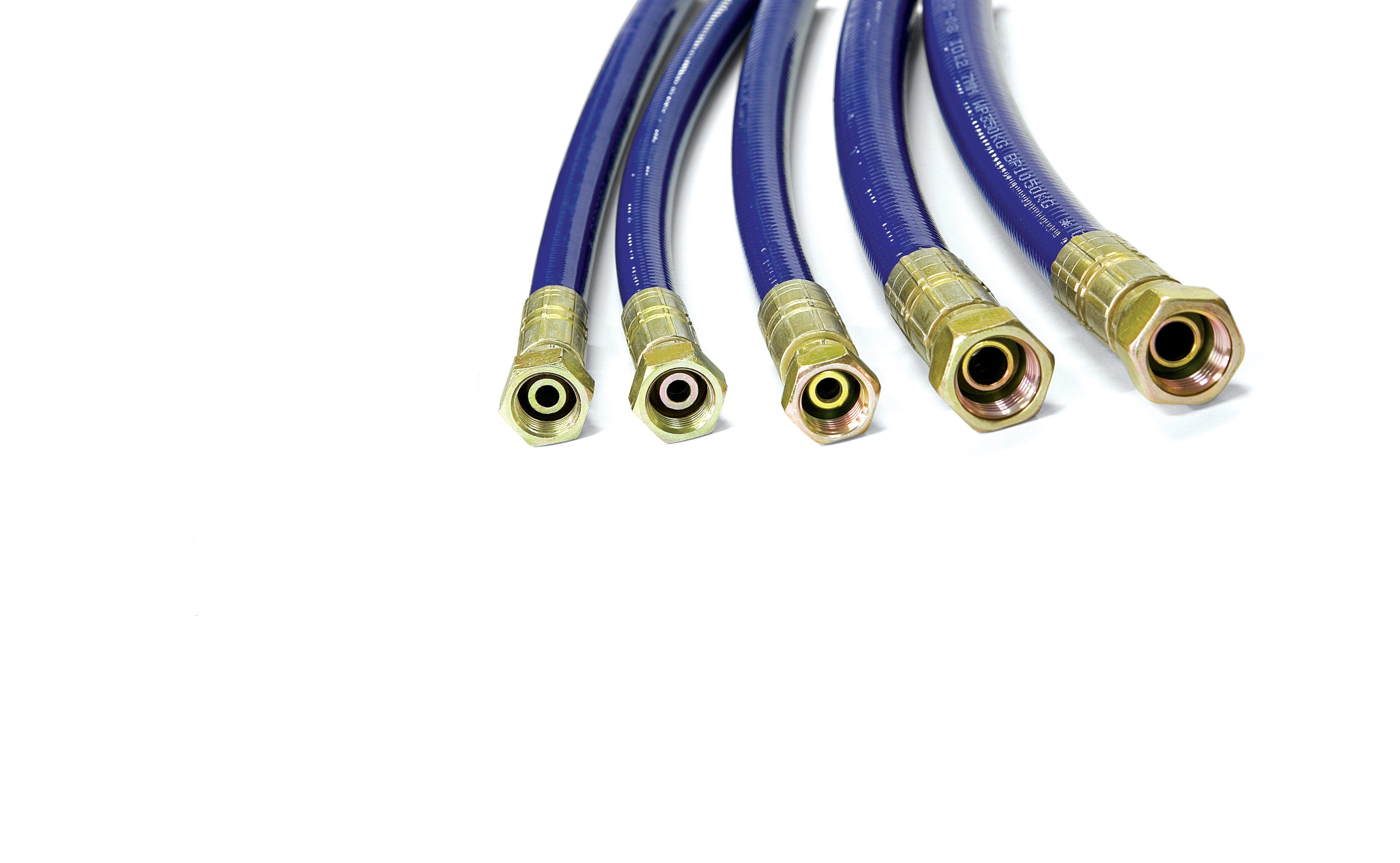

AIRLESS PAINT HOSE
#HOSE

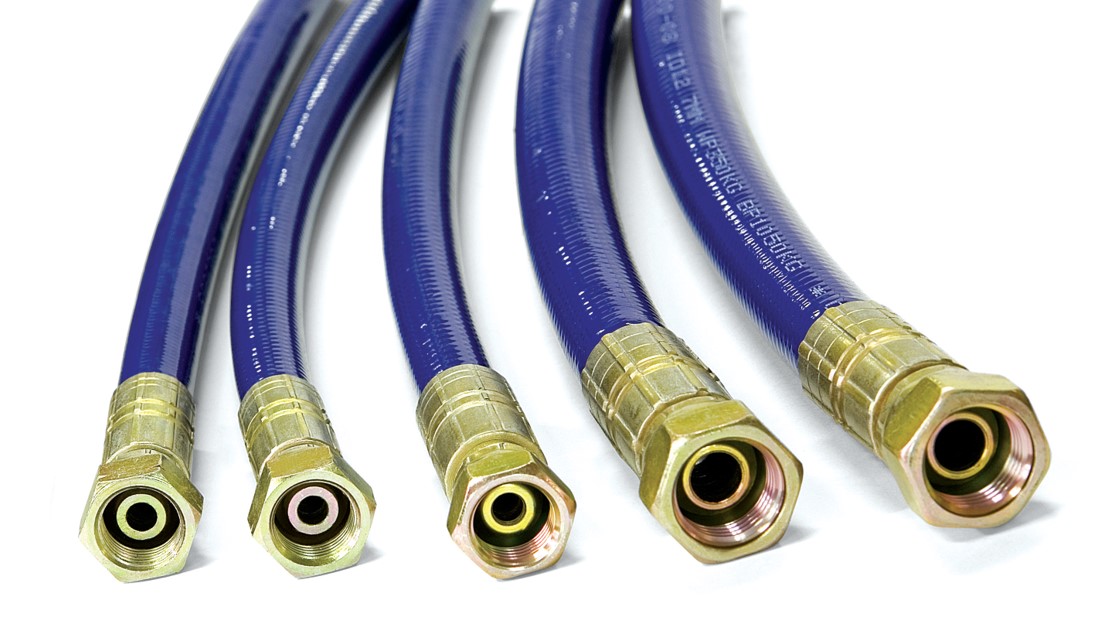

HP series (AIRLESS PAINT HOSE)
Light weight, excellent flexibility for operations.
Excellent resistance to high pressure and safe construction
for the application.
Standard : length 15m ; female both ends ; spring guards both ends
Hose Specification Table
| Part No | Size | Maximum Working Pressure | Minimum Burst Pressure |
|---|---|---|---|
| One textile braid hose | |||
| H1T1-015 | 3/16 | 4,000 PSI / 300 kgf/cm² | 12,000 PSI / 900 kgf/cm² |
| H1T2-015 | 1/4 | 4,000 PSI / 300 kgf/cm² | 12,000 PSI / 900 kgf/cm² |
| H1T3-015 | 3/8 | 3,400 PSI / 240 kgf/cm² | 10,200 PSI / 720 kgf/cm² |
| One wire braid hose | |||
| H1W1-015 | 3/16 | 7,000 PSI / 500 kgf/cm² | 21,000 PSI / 1,500 kgf/cm² |
| H1W2-015 | 1/4 | 6,000 PSI / 420 kgf/cm² | 17,000 PSI / 1,260 kgf/cm² |
| H1W3-015 | 3/8 | 4,900 PSI / 350 kgf/cm² | 17,000 PSI / 1,050 kgf/cm² |
| One wire and one texture braid hose | |||
| HTW2-015 | 1/4 | 7,800 PSI / 550 kgf/cm² | 23,000 PSI / 1,650 kgf/cm² |
| HTW3-015 | 3/8 | 6,400 PSI / 450 kgf/cm² | 19,000 PSI / 1,350 kgf/cm² |
| HTW4-015 | 1/2 | 5,000 PSI / 350 kgf/cm² | 15,000 PSI / 1,050 kgf/cm² |
| One wire and one aramid braid hose | |||
| HAW2-015 | 1/4 | 11,700 PSI / 820 kgf/cm² | 35,000 PSI / 2,460 kgf/cm² |
| HAW3-015 | 3/8 | 8,700 PSI / 620 kgf/cm² | 26,000 PSI / 1,860 kgf/cm² |
| HAW4-015 | 1/2 | 7,000 PSI / 520 kgf/cm² | 21,000 PSI / 1,560 kgf/cm² |
