ACCESSORIES
At DSTech our objective is to design and manufacture the longest lasting airless pumps and accessories that are synonymous
with the absolute highest quality airless spray equipment with superior customer service.

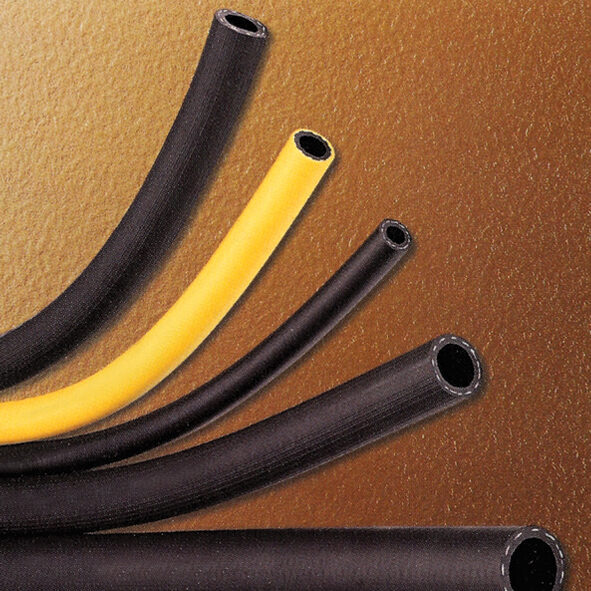

AIRLINE HOSE
#HOSE
HAC(AIRLINE HOSE)
Light weight(40% lighter than rubber hose)
Excellent flexibility, easy handling with minimum kink.
The compound meets oil, abrasion and ozone resistance.
Tungsten carbide ball and seat assure wear-resistance
Hose Specification Table
| Part No | Size | ID × OD (mm) | Length (m) | Working Pressure (kgf/cm²) | Burst Pressure (kgf/cm²) 20°C | Burst Pressure (kgf/cm²) 60°C | Weight (kg/roll) |
|---|---|---|---|---|---|---|---|
| HAL1-100 | 1/4 | 6.5 × 13 | 100 | 20 | 90 | 42 | 12 |
| HAL2-100 | 5/16 | 8 × 15 | 100 | 20 | 85 | 40 | 15 |
| HAL3-100 | 3/8 | 9.5 × 16.5 | 100 | 20 | 80 | 37 | 17 |
| HAL4-100 | 1/2 | 13 × 21.5 | 100 | 20 | 75 | 34 | 29 |
| HAL5-100 | 5/8 | 16 × 25 | 100 | 20 | 65 | 30 | 36 |
| HAL6-100 | 3/4 | 19 × 27.5 | 100 | 20 | 60 | 28 | 39 |
| HAL7-100 | 1 | 25 × 34.5 | 100 | 16 | 50 | 25 | 55 |
