ACCESSORIES
At DSTech our objective is to design and manufacture the longest lasting airless pumps and accessories that are synonymous
with the absolute highest quality airless spray equipment with superior customer service.

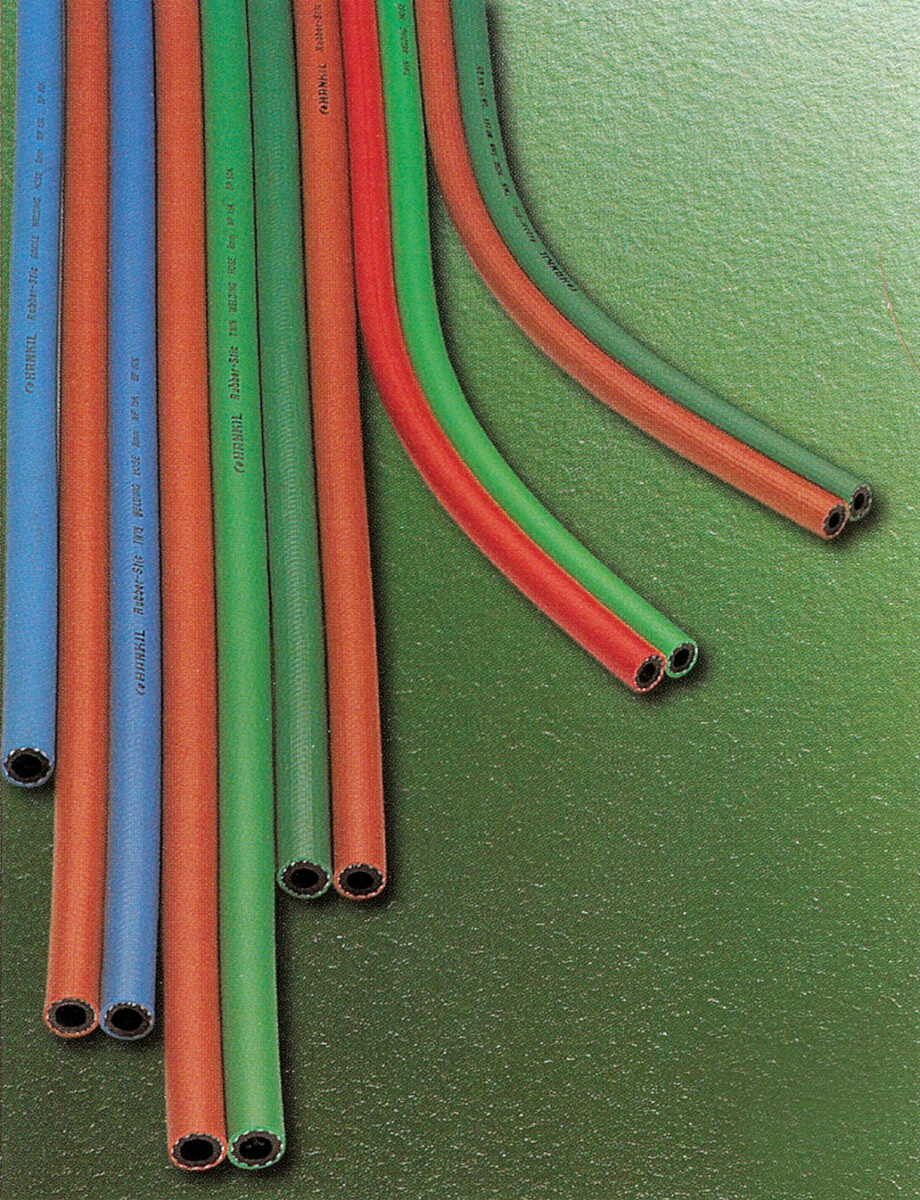

TWIN HOSE
#HOSE
HTC(TWIN HOSE)
Light weight(40% lighter than rubber hose)
Excellent flexibility, easy handling with minimum kink.
The compound meets oil, abrasion and ozone resistance.
Tungsten carbide ball and seat assure wear-resistance.
Hose Specification Table
| Part No | Size | ID × OD (mm) | Length (m) | Working Pressure (kgf/cm²) | Burst Pressure (kgf/cm²) 20°C | Burst Pressure (kgf/cm²) 60°C | Weight (kg/roll) |
|---|---|---|---|---|---|---|---|
| HAL1-100 | 1/4 | 6.5 × 13 | 100 | 20 | 90 | 42 | 12 |
| HAL2-100 | 5/16 | 8 × 15 | 100 | 20 | 85 | 40 | 15 |
| HAL3-100 | 3/8 | 9.5 × 16.5 | 100 | 20 | 80 | 37 | 17 |
| HAL4-100 | 1/2 | 13 × 21.5 | 100 | 20 | 75 | 34 | 29 |
| HAL5-100 | 5/8 | 16 × 25 | 100 | 20 | 65 | 30 | 36 |
| HAL6-100 | 3/4 | 19 × 27.5 | 100 | 20 | 60 | 28 | 39 |
| HAL7-100 | 1 | 25 × 34.5 | 100 | 16 | 50 | 25 | 55 |
