ACCESSORIES
At DSTech our objective is to design and manufacture the longest lasting airless pumps and accessories that are synonymous
with the absolute highest quality airless spray equipment with superior customer service.

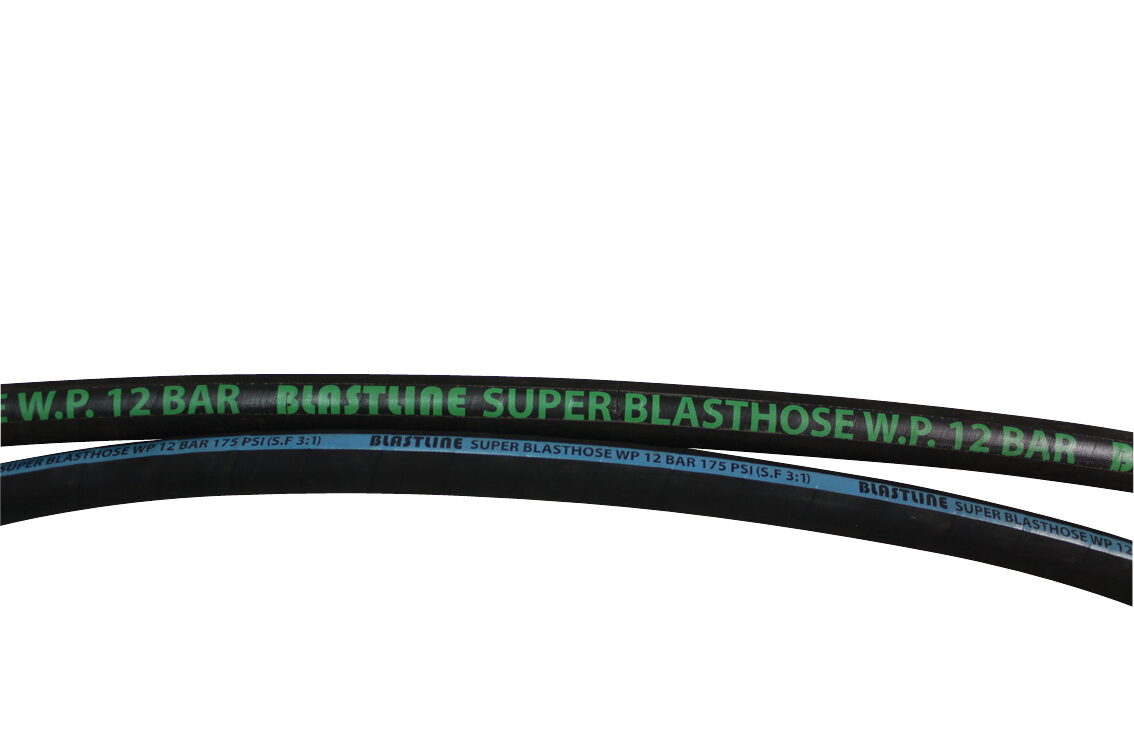

SAND BLAST HOSE
#HOSE
HBC (SAND BLAST HOSE)
Durable, Long lasting ; reinforced with strong synthetic fabric
for maximum protection against abrasion
Working temperature : -35°C/+70°C
Branding Blastline : hose W.P 12bar S.F 3:1
Standard length : 40m, 30m, 20m
Abrasion resistance of tube : 70±5mm³ according to DIN ISO4649:2006
Also available upon request : different diameter, different working pressure
abrasion resistance of tube 50±5mm³ according to DIN ISO4649:2006
Hose Specification Table
| Part No | Size | ID × OD (mm) | Wall Thickness (mm) | Working Pressure (kgf/cm²) | Weight (kg/roll) |
|---|---|---|---|---|---|
| DB1327 | 1/2 | 13 × 27 | 7 | 12 | 0.55 |
| DB1933 | 3/4 | 19 × 33 | 7 | 12 | 0.72 |
| DB2540 | 1 1/4 | 25 × 40 | 7.5 | 12 | 0.90 |
| DB3244 | 1 1/4 | 32 × 44.5 | 6.3 | 12 | 1.10 |
| DB3248 | 1 1/4 | 32 × 48 | 8 | 12 | 1.16 |
| DB3254 | 1 1/4 | 32 × 54 | 11 | 12 | 1.88 |
| DB3854 | 1 1/2 | 38 × 54 | 8 | 12 | 1.46 |
| DB3860 | 1 1/2 | 38 × 60 | 11 | 12 | 1.95 |
| DB5074 | 2 | 50 × 74 | 12 | 12 | 2.70 |
