Project Description

GHE-0500

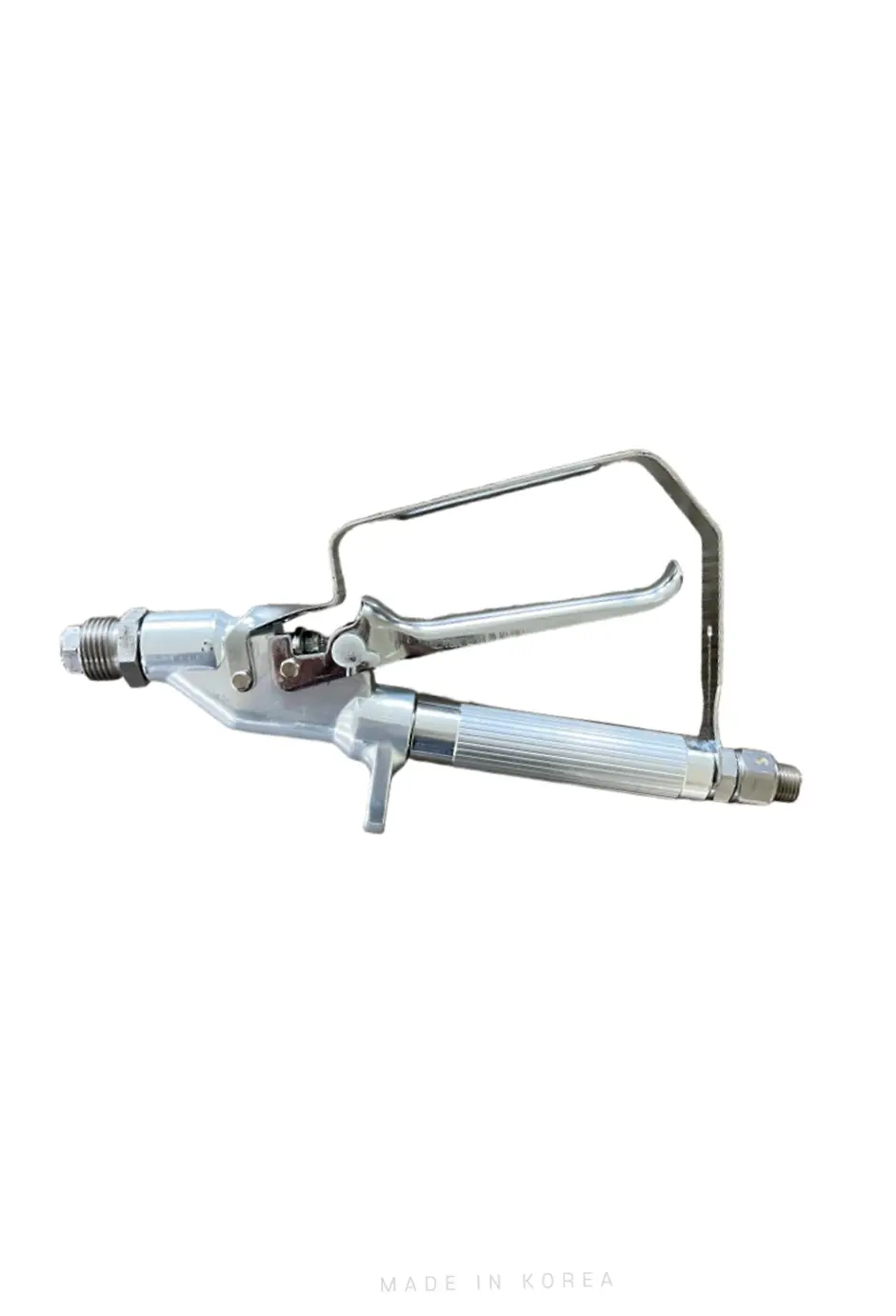

High pressure paint spray gun High pressure painting environment
  • Description

    GH Airless Gun series

    • Max operation pressure: 500 bar
    • Stainless steel swivel, needle and sheet
    • Applied fire proof O-rings
    • Designed 4 finger trigger and Hanger

  • Application

    • Typical fluids handled, Adhesive, Lubricants, Sealants, Mastics etc.

SPECIFICATION GHE-0500
MAXIMUM WORKING PRESSURE 500 bar (7,250 psi)
FLUID ORIFICE 0.090 inch (2.3 mm)
FLUID INLET 1/4 npsm (m)
MAXIMUM FLUID TEMPERATURE 71℃(160℉)
WEIGHT 576 g
